EVAC Patient Transfer Sheet
Fast, controlled horizontal evacuation for non-ambulatory patients — always in place between the mattress and the bed, ready the moment it’s needed.
250 kg Safe Working Load Flame-Retardant Antibacterial ✓ Tested to 500 kg Static Load
EU MDRMedical Device Regulation
CE · MDClass I — Rule I
BS 7175Crib 5 Flammability

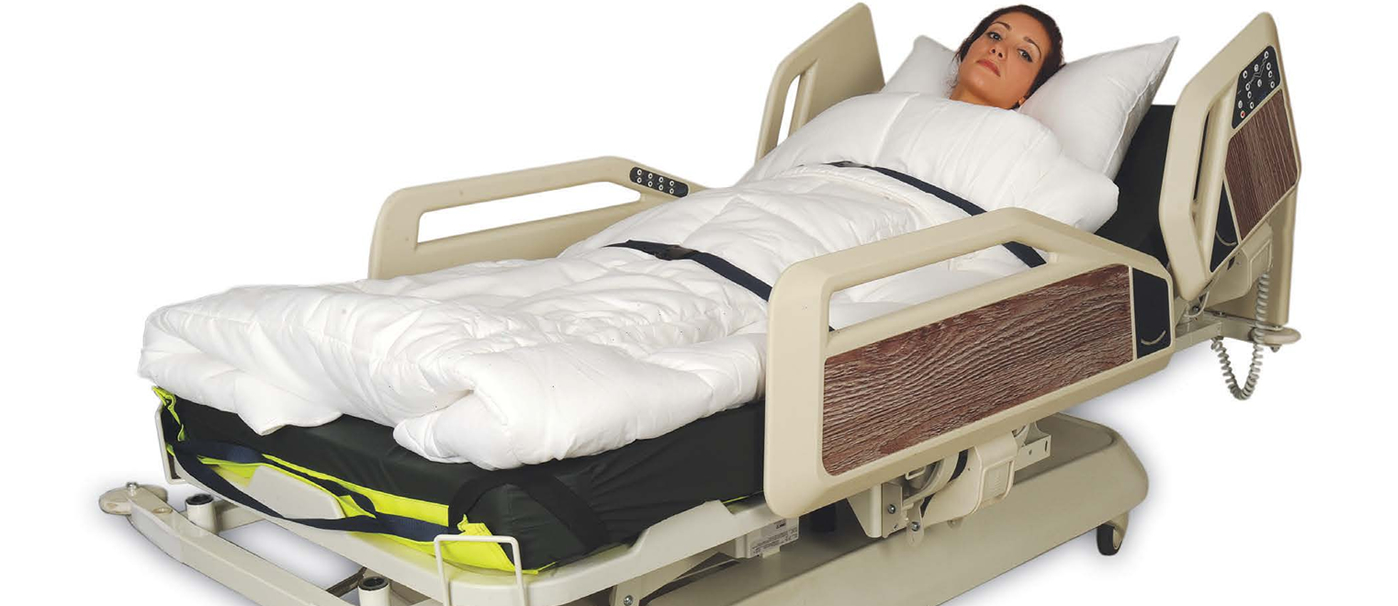

Placing the Evac Sheet
Always Ready, Right Under the Mattress

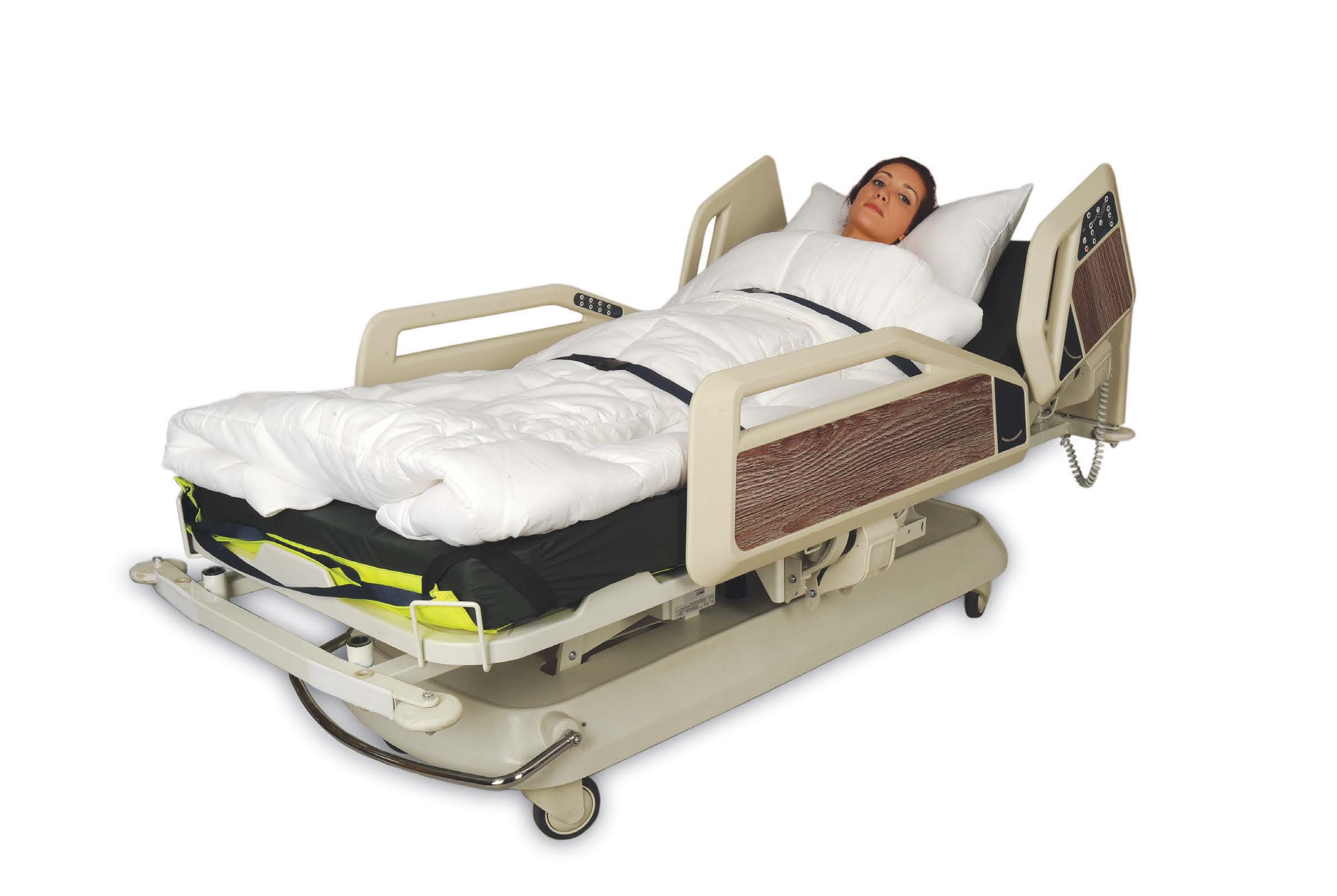

The Evac Sheet must be placed securely between the mattress and the bed. Fasten the safety straps around the patient to ensure their stability during evacuation — the sheet stays folded and ready for immediate use, at all times.

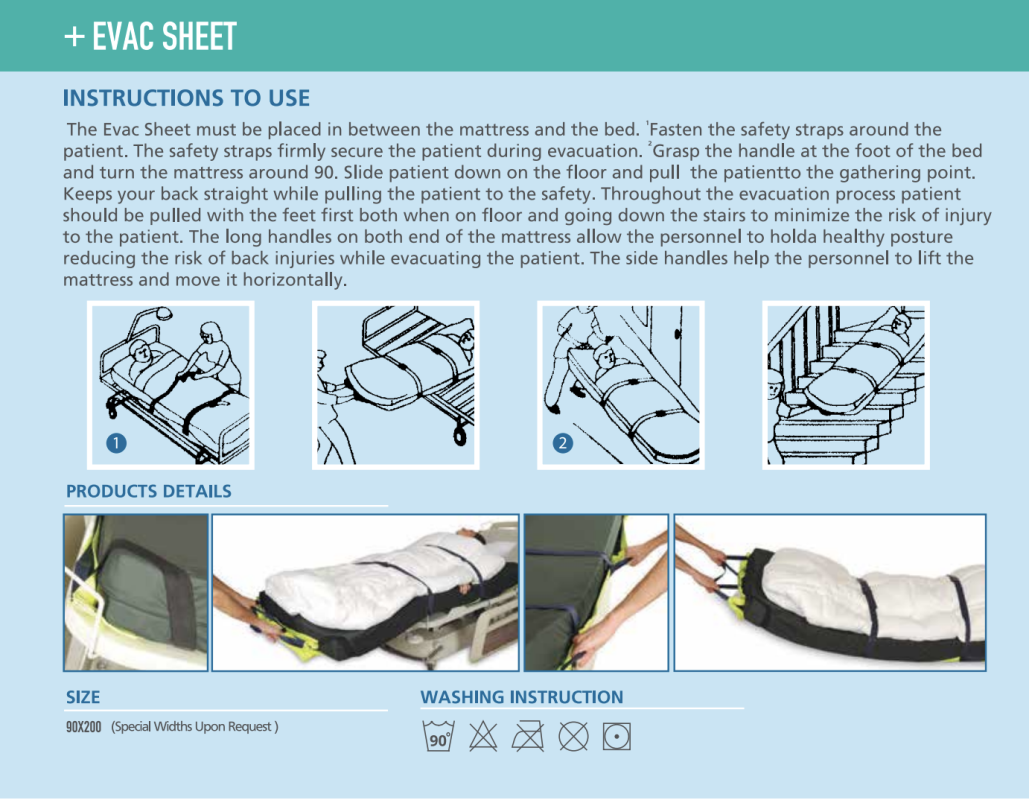

Turning & Sliding
Turn the Mattress, Slide the Patient to Safety
Grasp, turn, slide — feet first

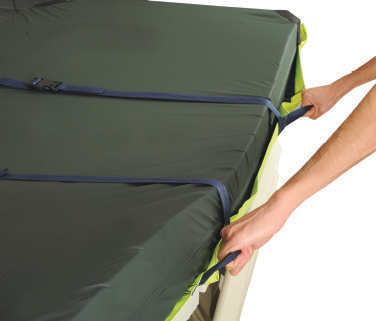

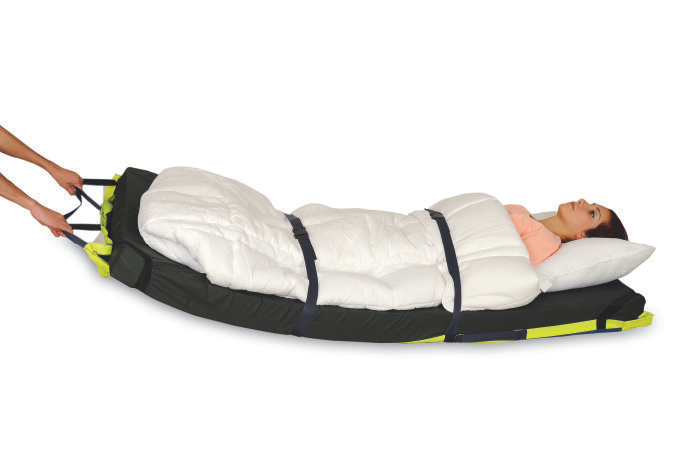

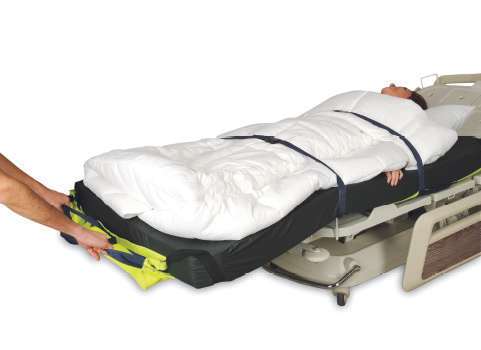

Grasp the handle at the foot of the bed and turn the mattress around 90°. Slide the patient down onto the floor and pull them toward the designated gathering point, keeping your back straight throughout.
✓Always pull the patient feet-first, both on the floor and going down stairs, to minimize injury risk
✓Reinforced handles on both ends let personnel keep a healthy, straight-backed posture
✓Side handles allow personnel to lift and move the sheet horizontally as a coordinated team
Why Evac Sheet
Built for the Moment It Matters
Flame-Retardant
Meets BS 7175:1989 Crib 5 acceptance criteria and is rated B1 to DIN 4102-1.
Reinforced Multi-Handle System
Long end handles plus side handles for secure, coordinated multi-person lifting.
250 kg Safe Working Load
Tested with a static load of 500 kg held for 10 minutes with no damage — a 2× safety margin.
Foldable & Compact
Folds flat for storage between the mattress and bed base — ready for immediate deployment.
Antibacterial
Meets antibacterial acceptance criteria in independent lab testing.
Cleanable & Disinfectable
Machine washable up to 90°C, or spray-and-wipe with hospital-grade disinfectant between patients.
Evac Sheet in Use
Product Gallery
Frequently Asked Questions
Where is the EVAC sheet kept and how is it used in an evacuation?
The sheet stays folded between the mattress and the bed base, ready for immediate use. In an evacuation the safety straps are fastened around the patient, the mattress is turned about 90° using the foot-end handle, and the patient is slid down to the floor and pulled feet-first to the gathering point.
What is the EVAC sheet made of, and which sizes are available?
It is made from a heavy-duty navy blue Oxford weave of 200 g/m² (±10%), reinforced with PES handles and straps. There are no fixed dimensions: the sheet is manufactured to any size on request.
Is the sheet flame retardant and suitable for cold conditions?
Yes. It meets the BS 7175:1989 Crib 5 acceptance criteria and is rated B1 to DIN 4102-1. It also passed low-temperature bend testing at −20 °C with no cracking (DIN EN 1876-1), so it is reliable in ambulances and outdoors.
Is the EVAC sheet a medical device?
Yes. It is a Class I medical device under EU MDR 2017/745 (Rule I) with Basic UDI-DI 8682550EVAC8W, produced under an EN ISO 13485 quality management system.
Ordering
Orders & Samples
Minimum order
Minimum order quantities depend on the product and the degree of customisation. We confirm them together with your quote.
Samples
Samples are available on request. Tell us which product and specification you would like to test.
Lead time
Lead times depend on order size and specification and are confirmed in our offer.
Customisation
Ask us about custom sizes, colours, packaging or private label – we will check what is possible for your product.
Need the Full Technical Specifications?
Sizes, load-test data, material standards and IFU documents are on the technical details page.
